Top quality OEM short wave infrared halogen lamp

FOB Reference Price:Get Latest Price
US $0.6-300 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
RS-8805
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Resucerial
Type:
Heating Tube
Application:
Heater Parts
Certification:
CE
Name:
short wave infrared halogen lamp
Other name:
top quality short wave infrared halogen lamp
Life:
5000h
Heating resistance wire:
Tungsten
Coated:
Gold, White
Material:
High quality quartz glass tube
Watts:
As Customer's need
Voltage:
As Customer's need
Length:
As Customer's need
Sharp:
As Customer's need
Supply Ability
Supply Ability:
6000000 Piece/Pieces per Year short wave infrared halogen lamp
Packaging & Delivery
Packaging Details
short wave infrared halogen lamp packing:carton case and plywood case
Port
Shanghai/Ningbo/Qingdao



Product Description

Top quality OEM short wave infrared halogen lamp



Feature of short wave infrared halogen lamp:



l        Halogen type, which avoids blackening of tube and consequently infrared depreciation during lifetime

l        Ideal, high-power heat source for a wide range of industrial heating applications(Gold Reflector/Liner Infrared Heat Lamp)

l        Gold coating to reduce the visible glare, improve the color rendering and raise the infrared output compared to existing zone heating lamps. It prevent your eyes from the damage of UV lights.(Gold Coating Infrared Heat Lamp)

l        Comfortable and healthy heat. Substantially lower visible glare level than even ruby and other heating lamps. (Gold Coating Infrared Heat Lamp)

l        All the infrared source can be focused on half surface of the tube, which 75% of infrared source can be reflector in a fixed direction(White Reflector infrared Heat Lamp)

l        Light color is red and comfortable thanks to the ruby quartz. Glare is reduced and well prevent your eyes from the damage of UV lights.(Ruby Infrared Heat Lamp)

l        Economic heat source,90% of energy is transmitted as infrared heat

l        Short wave infrared radiator

l        Clean, safe, Green heat source

l        Fast response, within 3 seconds to reach 100% power output after be electrified and reduce the temperature fast

l        Long Lifetime

l        Easy to install & low charge of maintenance and replacement

l        Direct heat-warm objection, not the air

l        Dimmable from 0-100% for heat to match your needs



Parameter of short wave infrared halogen lamp:



FinishClear,reflector,gold
BrandResucerial
Wavelenght RangeShort wave infrared radiator
CertificateCE,Rohs,SGS
Life Time5000h
Heating Resistance Wiretungsten wire
MaterialGrade A Baked quartz tube
ShapeStraight, C, U,Round,Pear,spiral
Voltage12v,24v,36v,75v,110v,120v,220v,230v,240v,380v,400v,415v
Watts100-10000w
Length50-4000mm
Outer Diameter6,8,10,11,12,13,14,15,16,18,20,23,35,50mm
BaseR7s,SK15,Round,X-Metal
Burning PositionHorizontal/Universal
CableAs buyer's demand
Color Temperature2300-2500K
Response Time1-2 sec
Electrical-Thermal
Conversion Efficiency
≥95%

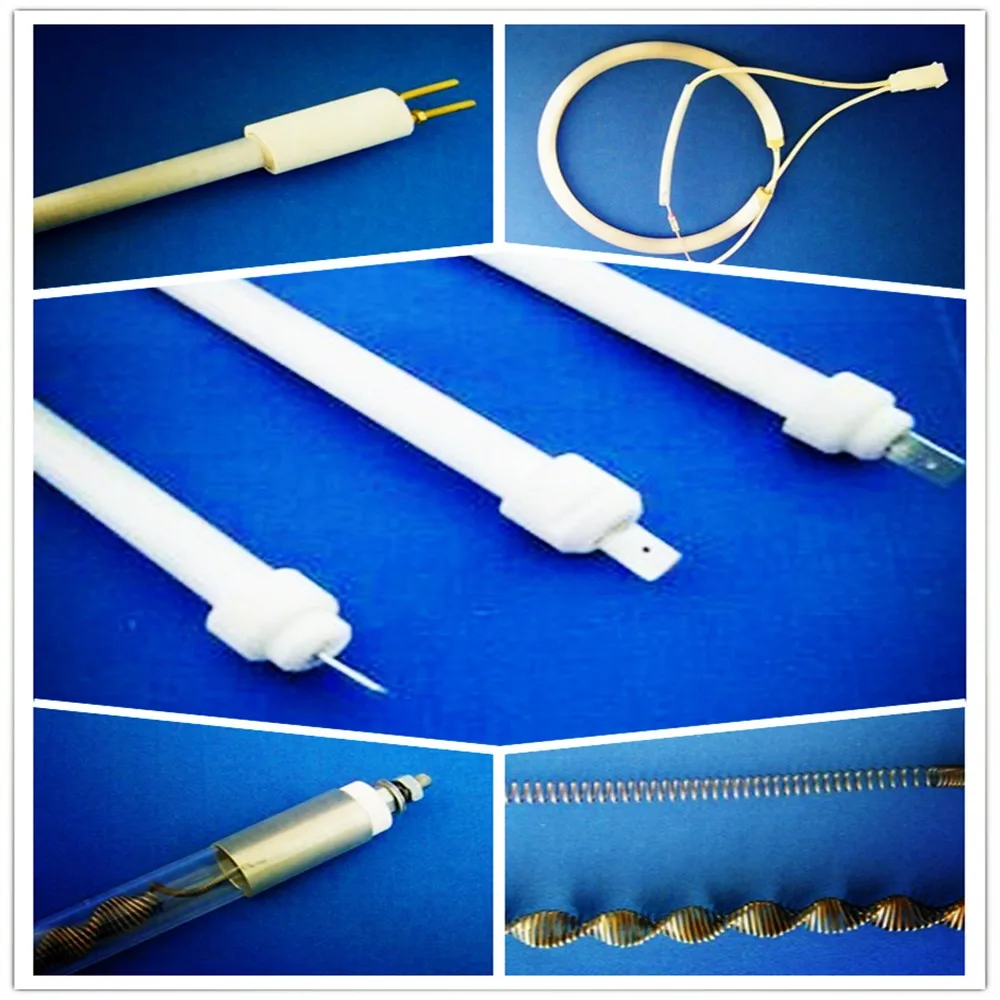

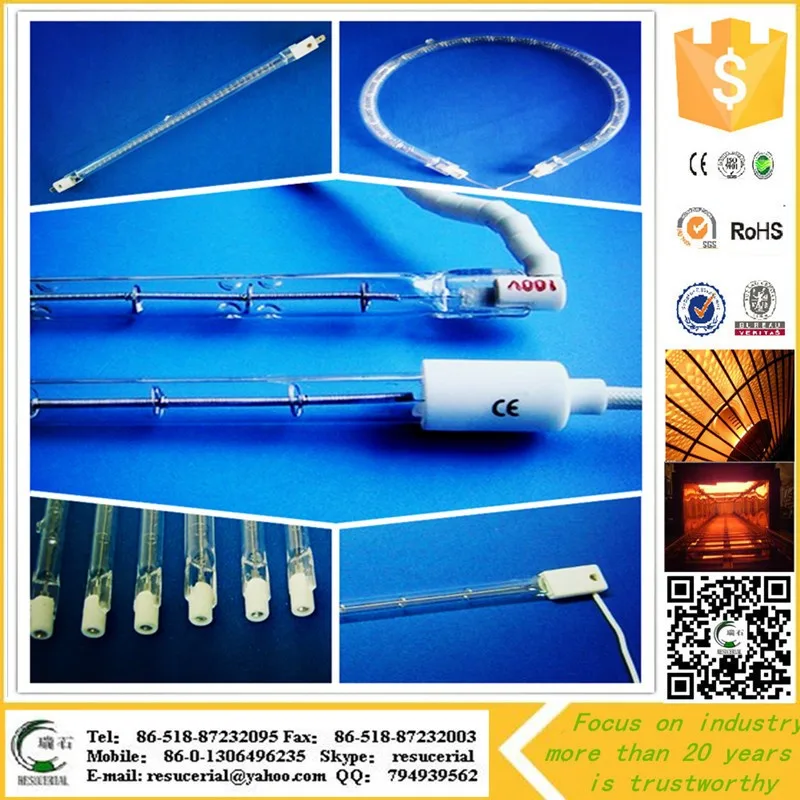

Pictures of short wave infrared halogen lamp:



















Samples:



Applications of short wave infrared halogen lamp:

 l        Room heaters, patio heaters, heating system in shoes-making machine, paint drying, sauna, dryer, outdoor zone heating and space heating in restaurant, café terraces, factory, sports hall, exhibition hall, work area, church, large hall, warehouse, storage area, garage, greenhouse, open air application, stadium, camp site

l        Plastics thermoforming, blowing of plastic bottles, softening and melting of plastics, paint drying in tunnels and body shops, paper drying in paper

l        Mills, powder coating, drying of lacquers and printing inks, heat sterilization,

Infrared cabins, cookers & ovens, food warming & fast baking



Company Information

Our company:

Certificate:

Exhibition:

About production:

Packaging & Shipping

Packing:

short wave infrared halogen lamp
