Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Resucerial
  • Model Number: RE418-U
  • Type: Clear Quartz Pipe
  • Color: Clear,transparent
  • Application: Thermocouple sampler tube
  • Surface Treatment: Polished
  • Shape: One End Closed Quartz Tube
  • Outside Diameter: 2mm,2.5mm,3mm
  • Ozone Content: High Ozone
  • Name: different bend shapes quartz tubes
  • Other name: alibaba china different bend shapes quartz tubes
  • Softening Point: 1680℃
  • Annealing Point: 1210℃
  • Strain Point: 1120℃
  • Density: 2.2g/cm3
  • Dielectric Constant: 3.75
  • Thermal Conductivity(20℃): 1.40W/m.℃
  • Specific Heat(20℃): 670J/Kg.℃
  • Glass Type: Clear Fused Quartz Glass Tube

Packaging & Delivery

Packaging Details different bend shapes quartz tubes Package:
5000piece per carton case + several case in one plywood case
Delivery Time within 7days according order quantities and stocks

Specifications

different bend shapes quartz tubes
1.U Sharp Quartz Tube with tight size tolerance
2.Melting point at 1730 degre

Alibaba china best selling different bend shapes quartz tubes



Product Description



Feature of different bend shapes quartz tubes:

1.U Sharp Quartz Tube with tight size tolerance, slinky form and excellent feature.

2.Melting point at 1730 degree, mainly apply for Thermocouples, samplers and high temperature parts.

3.This products providing to Europe, America, the all and the one quality accord with international standard.

3*1.5*15mm

3*1.5*16mm

3*1.5*18mm

3*1.5*22mm

3*1.5*23mm

3*1.5*32mm

3*1.5*45mm

3*1.2*23mm

and etc

we can make as customer's drawings for different sizes. Please contact with us from more.


Parameter of different bend shapes quartz tubes:

ModelRE418-U
BrandResucerial
Outer Diameter2.5,3mm
Purity >99.95%(SiO2 content)
Wall Thickness0.50-1mm
Height15,16,18,22,23,26,42,45mm
ShapeU type
Softening Point1680℃
Annealing Point1210℃
Strain Point1120℃
Density2.2g/cm
Hardness5.5-6.50Mohs'
Design Tensile Strength4.80x107N/m^2
Design Compressive Strength1.10x10N/m^2
Cofficient Of Thermal
Expansion(20-320℃)
5.70x 10-7cm/cm.℃
Thermal Conductivity(20℃)1.40W/m.℃
Specific Heat(20℃)670J/Kg.℃
Electrical Resistivity(350℃)7x10ohm.cm
Dielectric Constant3.75
Dielectric Strength5x 107 V/m
Typcial ApplicationThermocouple sampler tube



Chemical Composition

AL

K

Na

Li

Ca

Mg

Cu

Mn

Pb

B

Ti

20

3.5

3.5

1.0

2.0

0.5

0.3

0.5

<0.01

<0.2

2.0

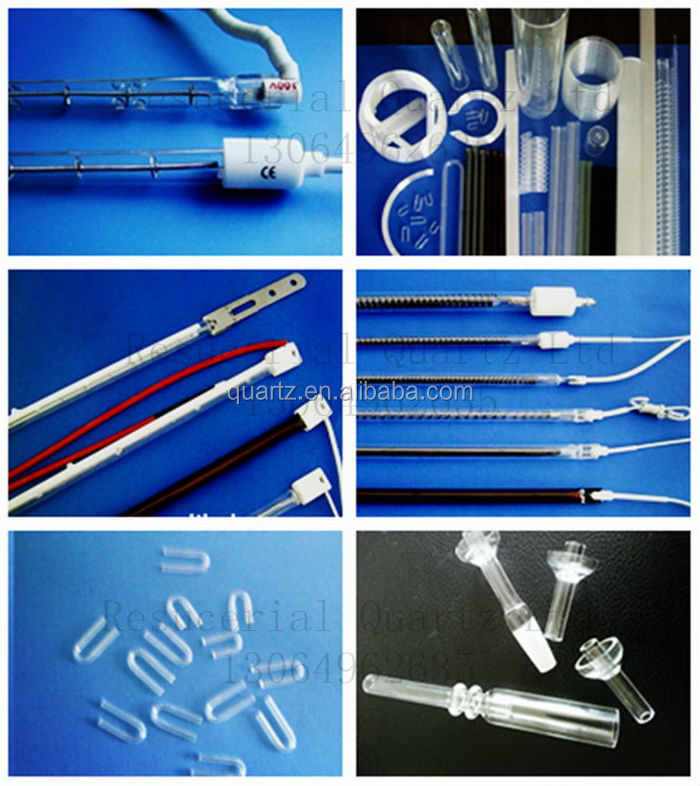

Photos of different bend shapes quartz tubes:













Samples:





Application of different bend shapes quartz tubes:

1.Fused quartz glass tube available as continuous machine drawn and automatic controlled tubing.

2.This glass had the typical characteriastics of high purity, good spectral transmission, well controlled dimension and lower OH and so on.

3.It serves as the first choice of heat resistant material for halogen lamps, mercury lamps, metal halide lamps and other quartz lamps.

4.This glass can be supplied in the range of 3-450mm outside diameter, 0.6-20.0mm wall thickness and 10-4500mm length.

5.Exhaust tubes with good CPK are suitable for high-speed streamline production.

6.And further processing of trim cutting, fire polishing, bending and pinching and etc. can be done according to the requirement of customers.

7.OH-content can be controled within 20ppm\15ppm\10ppm\5ppm\2ppm according to the requirement of customers.



Samples:



Certification:



Production Process:
