Large diameter Quartz glass tube

FOB Reference Price:Get Latest Price
US $1-36 / Pieces | 1 Piece/Pieces (Min. Order)
Grade:
A
Customization:
Customized packaging (Min. Order: 1000 Pieces)
Graphic customization (Min. Order: 1000 Pieces)

More

Customized logo (Min. Order: 1000 Pieces) Less
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 10,000-30,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 2
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 81% - 90%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Resucerial
Model Number:
RE418
Type:
Clear Quartz Pipe
Color:
Clear/milky/ruby/black
Application:
light,joint,chemical and etc
Surface Treatment:
Polished
Shape:
One End Closed Quartz Tube
Outside Diameter:
1.50-450mm
Ozone Content:
High Ozone
Name:
Large diameter Quartz glass tube
Other name:
Quartz glass tube
Glass Type:
high ozone, ozone free, uv blocking, Low OH
Softening Point:
1680℃
Annealing Point:
1210℃
Density:
2.2g/cm3
Thermal Conductivity(20℃):
1.40W/m.℃
Specific Heat(20℃):
670J/Kg.℃
Dielectric Constant:
3.75
Strain Point:
1120℃
Supply Ability
Supply Ability:
890 Ton/Tons per Year Large diameter Quartz glass tube
Packaging & Delivery
Packaging Details
Large diameter Quartz glass tube package:
carton case + plywood case
Safe and strong package for shipment by Sea or Air
Port
shanghai/qingdao
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Est. Time(day) 7 10 20 To be negotiated
Video Description

Low price Large diameter Quartz glass tube



Product Description



Quartz glass type:

  • Clear fused quartz glass tube
  • Dehydroxyl(baked) clear fused quartz glass tube
  • low Hydroxyl(vacuum baked) clear fused quartz glass tube
  • high ozone clear fused quartz glass tube
  • uv blocking quartz tube
  • ozone free quartz glass tube

1.Fused quartz glass tube available as continuous machine drawn and automatic controlled tubing.

2.This glass had the typical characteriastics of high purity, good spectral transmission, well controlled dimension and lower OH and so on.

3.It serves as the first choice of heat resistant material for halogen lamps, mercury lamps, metal halide lamps and other quartz lamps, used in light, chemical, semiconductor and etc

4.This glass can be supplied in the range of 3-450mm outside diameter, 0.6-20.0mm wall thickness and 10-4500mm length.

5.Exhaust tubes with good CPK are suitable for high-speed streamline production.

6.And further processing of trim cutting, fire polishing, bending and pinching and etc. can be done according to the requirement of customers.

7.OH-content can be controled within 20ppm\15ppm\10ppm\5ppm\2ppm according to the requirement of customers.

Typical Application:

1.halogen,germicidal with ozone lamps,heater etc.
2.mercury,halogen,heater.
3.metal halide lamps and other applications requiring hydroxyl free material.
4.high rate of transmittance and hydroxyl free(import material produced).
5.high rate of transmittance of high ozone germicidal lamps(import material produced).
6.uv blocking applications including halogen and discharge lamps etc.
7.ozone free uv germicidal lamps etc.
8.optical, sunlight,semiconductor and etc.



Parameter of Large diameter Quartz glass tube:

ModelRE418
BrandResucerial
Outer Diameter1.50-450mm
Material high purity >99.95%(SiO2)
Wall Thickness0.30-20mm
Length10-4500mm
ShapeStraight, C, U,Round,Pear,spiral,domed, closed
Softening Point1680℃
Annealing Point1210℃
Strain Point1120℃
Density2.2g/cm3
Hardness5.5-6.50Mohs'
Design Tensile Strength4.80x 107 N/m^2
Design Compressive Strength1.10x 109 N/m^2
Cofficient Of Thermal
Expansion(20-320℃)
5.70x 10-7cm/cm.℃
Thermal Conductivity(20℃)1.40W/m.℃
Specific Heat(20℃)670J/Kg.℃
Electrical Resistivity(350℃)7x 107ohm.cm
Dielectric Constant3.75
Dielectric Strength5x107V/m



 Clear Fused Quartz Glass Tube

Chemical Composition

AL

K

Na

Li

Ca

Mg

Cu

Mn

Pb

B

Ti

20

3.5

3.5

1.0

2.0

0.5

0.3

0.5

<0.01

<0.2

2.0





Dimensional Tolerance
RANGE OF OD ODWTsidingOUT OF ROUNDBOW/1220MM
<6MM±2.0%±10%12%2.00%2.5MM
6.0-15.00MM±1.25%±8%10%1.50%2.5MM
15.0-20.0MM±1.25%±10%15%1.50%2.5MM
20.0-25.0MM±1.25%±10%15%1.50%3.0MM
25.0-30.0MM±1.35%±12%15%1.50%3.0MM
30.0-80.0MM±1.5%±14%15%2.00%3.0MM
80.0-150.0MM±1.5%±14%15%2.00%3.0MM
150.0-200.0MM±1.5%±14%15%2.00%3.0MM
200.0-300.0MM±1.5%±14%15%2.00%3.0MM
300.0-450.0MM±1.5%±14%15%2.00%3.0MM



Photos of Large diameter Quartz glass tube:

















Certification:

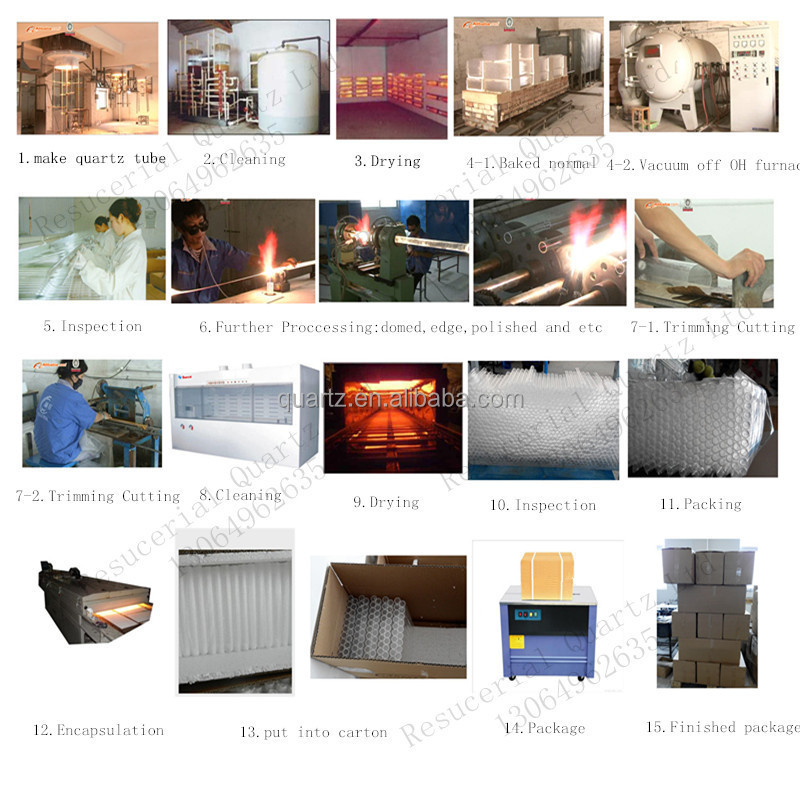

Production Process:





Packaging & Shipping



Packing:



Shipping:



Company Information



Our Team:



Exhibition:
