Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUCERIAL
  • Model Number: RE302-TW
  • Type: Heating Tube
  • Application: Heater Parts
  • Certification: CE, CE, SGS infrared heating lamp 500w
  • Product Name: Heating element quartz infrared heat Lamp infrared heating lamp
  • Another Name: Heating element quartz infrared heat Lamp infrared heating lamp
  • ir wave: near short wave length
  • heating resistance wire: tungsten
  • response: 1-2s
  • life time: 5000h
  • Glass Type: High purity Grade A quartz tube
  • Connection: with or without wire cable
  • type: R7s Sk15 round R7 X

Packaging & Delivery

Packaging Details carton case
Delivery Time Withine 3-15days after receipt of the payment

Heating element quartz infrared heat Lamp infrared heating lamp



Heating element quartz infrared heat Lamp infrared heating lamp



Heating element quartz infrared heat Lamp infrared heating lamp

Heating element quartz infrared heat Lamp infrared heating lamp

Our product have the following prominent merit:
· Wave length
0.76~25μm
· Effective thermal efficiency using rate
86%
· Heating inertia
It will reach 50% rated power after closing circuit about 1-2 sec, and work in full power after closing circuit
about 2-4 sec; also, the temperature decrease are rapid.
· Rated power
30W---6000W, the single hole lamp may achieve above 6000W.
· Outer surface coating
Coating whole or part with the valuable heavy metal such as King, Titanium as well oxide such as Zirconium,
Aluminum, which can improve heating efficiency greatly.
· Lifetime  infrared heating lamp 500w
Below 2000Ws more than 5,000 hours if be used continuously;
Above 3000Ws more than 3,000 hours if be used continuously.
· Controlling
It to be made up servomechanism of the temperature with temperature controlling apparatus and booster.
· Specification infrared heating lamp 500w
Power: 30W - 6000W
Voltage: 36V - 110V, 220V - 380V
Length: 60mm - 3000mm
· Wall thickness
1.0 mm or 1.2 mm
· Shape  infrared heating lamp 500w
Single hole lamp, double holes lamp, round shape lamp, special shape lamp;
We can product or design all kinds of sharp needed.

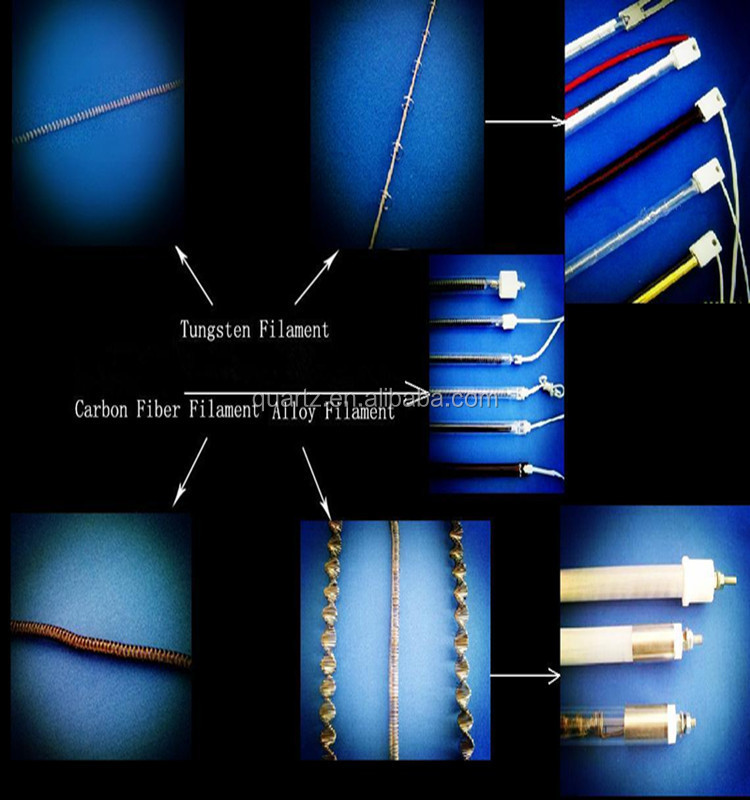

 Filament types of Heating element quartz infrared heat Lamp infrared heating lamp:



There are three types of filament as heating resistance. Please compare and check what you need. If you have any problem or doubts, please contact with us freely.

Packaging & Shipping

Package:

Shipping:







Certifications

Certifications:





Production Process:

Production Process:





Company Information

Our Team:

Exhibition:

  Heating element quartz infrared heat Lamp infrared heating lamp
